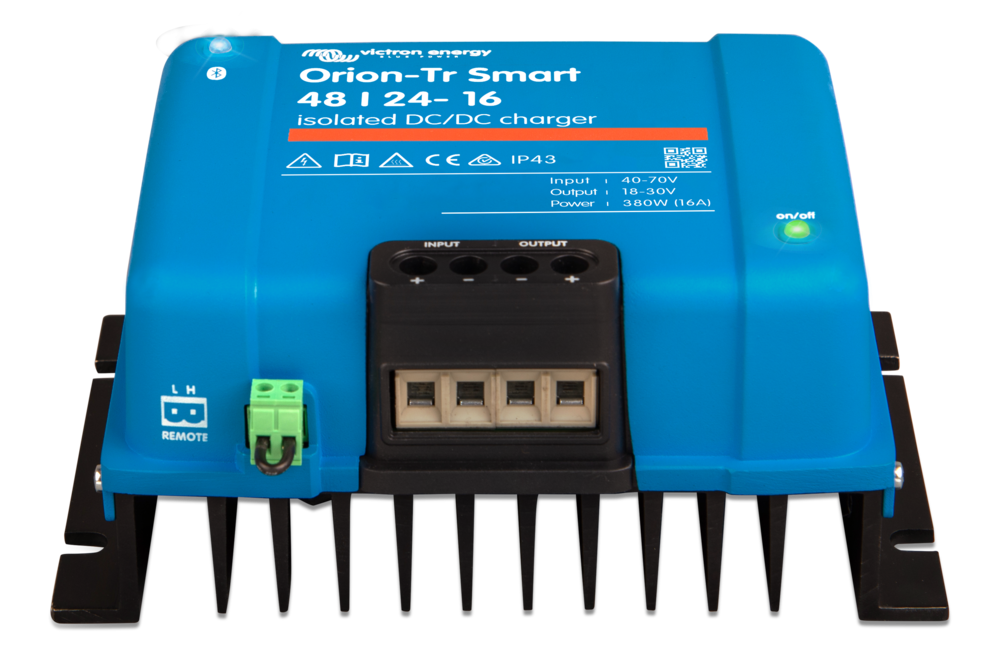

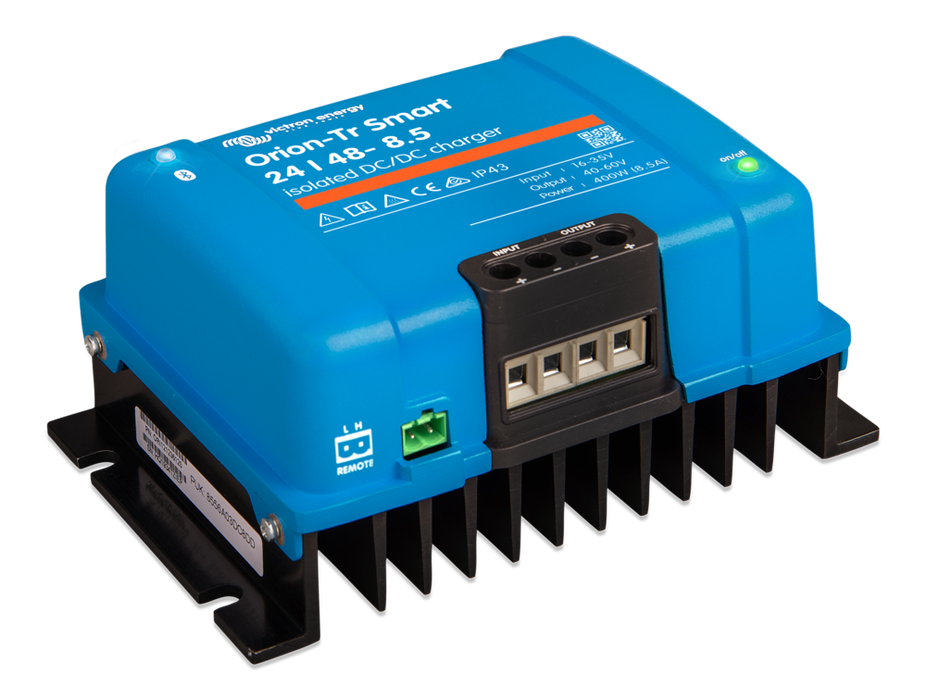

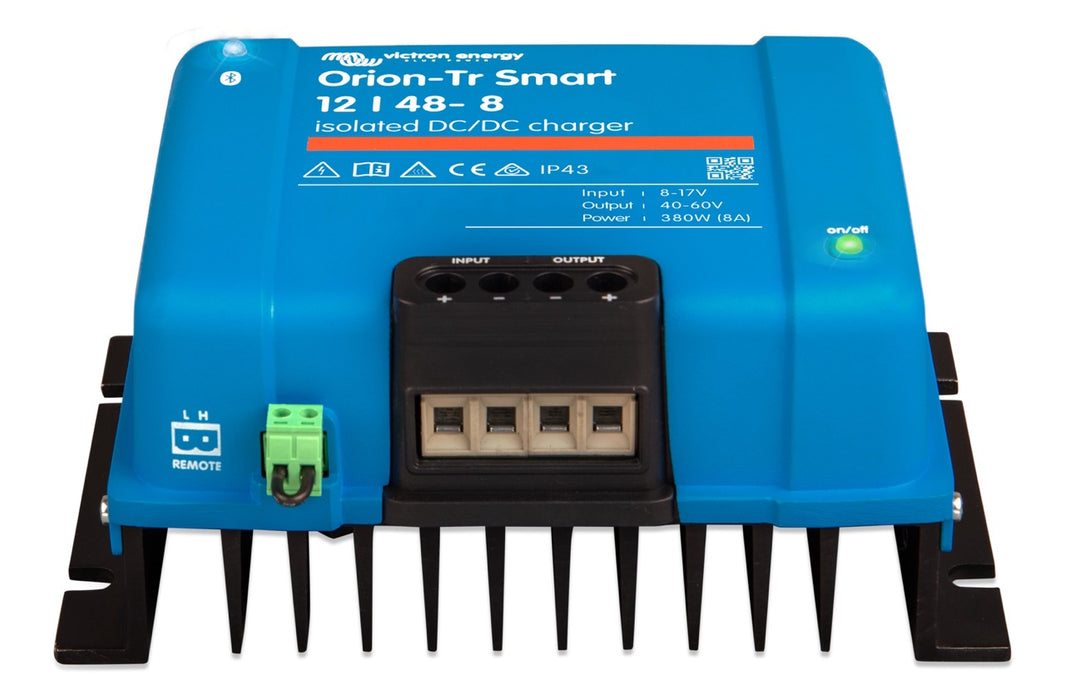

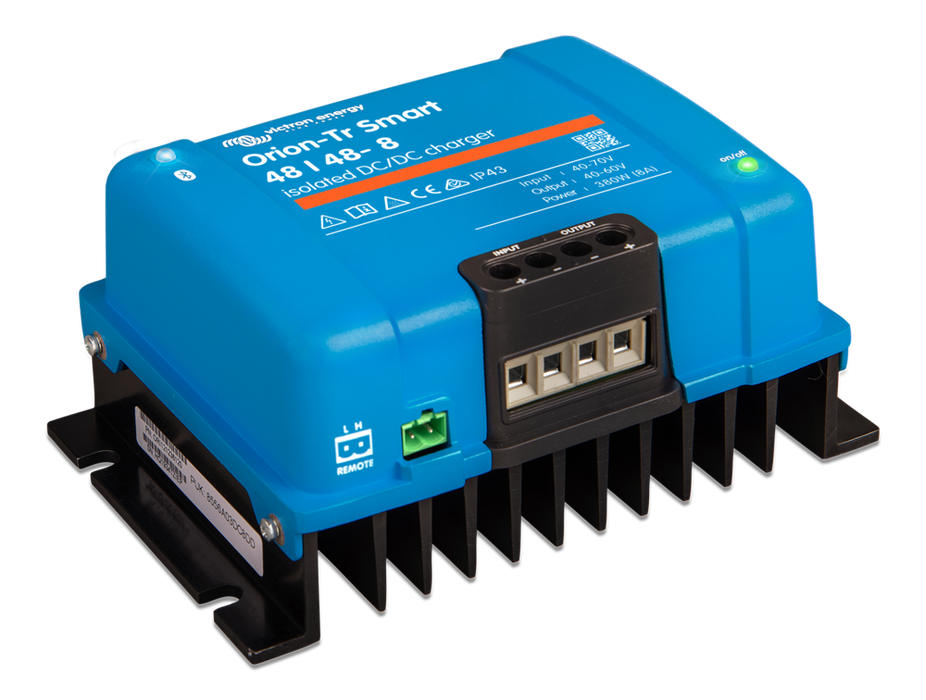

Orion-Tr Smart DC-DC Charger Isolated
1471 available | Ships in 1-2 days
💡 Have a Question? Get a Real Answer >
Downloads
Datasheets
Enclosure dimensions
- Orion-Tr Smart Charger Isolated 12V/24V 220W/240W/280W
- Orion-Tr Smart Charger Isolated 12V/24V 220W/240W/280W (3D)
- Orion-Tr Smart Charger Isolated 12V/24V 220W/240W/280W (stp)
- Orion-Tr Smart Charger Isolated 12V/24V 360W-400W (3D)
- Orion-Tr Smart Charger Isolated 12V/24V 360W-400W (stp)
- Orion-Tr Smart Charger Isolated 12V/24V 360W-400W
System schematics
- VE.Direct drawing with Phoenix charger 12/50-1 inverter 375W Li Batt smallBMS MPPT 100/30 Orion-Tr Smart
- US Van Manual & Drawing Smart BMS CL12_100 MultiPlus 3kVA 12V 120V 60Hz
- US-VAN Drawing VEBus BMS MultiPlus 3KW DMC 400Ah Li Cerbo SBP 100A & 65A SmartShunt MPPT 100-50 OrionTr
- Narrow Boat MultiPlus 3kVA_12V_230V Lynx Smart BMS&Distributors Alternator WS500 MPPT SBP Orion-Tr Cerbo GX touch 50 Bow thruster Galvanic isolator
- US Van Manual & Drawing VEBus BMS V2 MultiPlus-II 3kVA 12V 120V 60Hz
- Van/Motorhome Manual & Drawing 3 monitoring setups MultiPlus 3kVA 12V 230V 50Hz Drop-in Li
The Orion-Tr Smart DC-DC isolated charger delivers precise, controlled battery charging from your vehicle or boat's smart or regular alternator. Built-in Bluetooth makes this device fully programmable from the VictronConnect app. Set custom charging parameters for your battery chemistry, including LiFePO4 batteries.
The Orion's engine running detection mechanism ensures that the house battery charges only when the engine is running and prevents the starter battery from discharging. Control the remote ON/OFF contact manually or through a battery management system.
The Orion-Tr Smart charger can be used in 12V or 24V systems. An unlimited number of units can be connected in parallel to increase output power. Suitable for high temperatures up to 131°F with a full rated output up to 104°F.
What's the difference between an isolated and non-isolated Victron DC-DC charger? Read our technical article.
