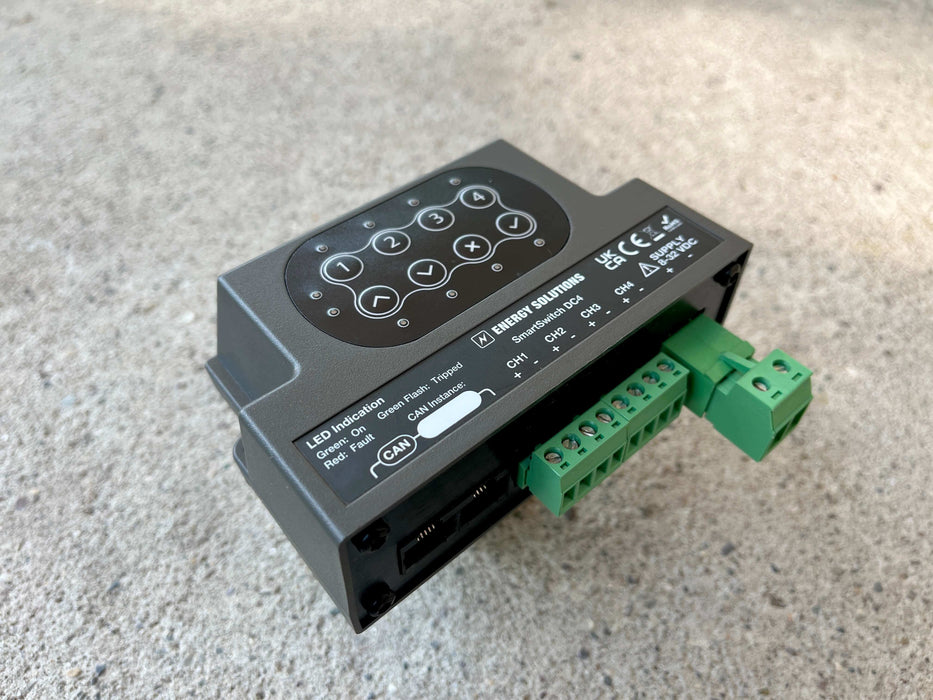

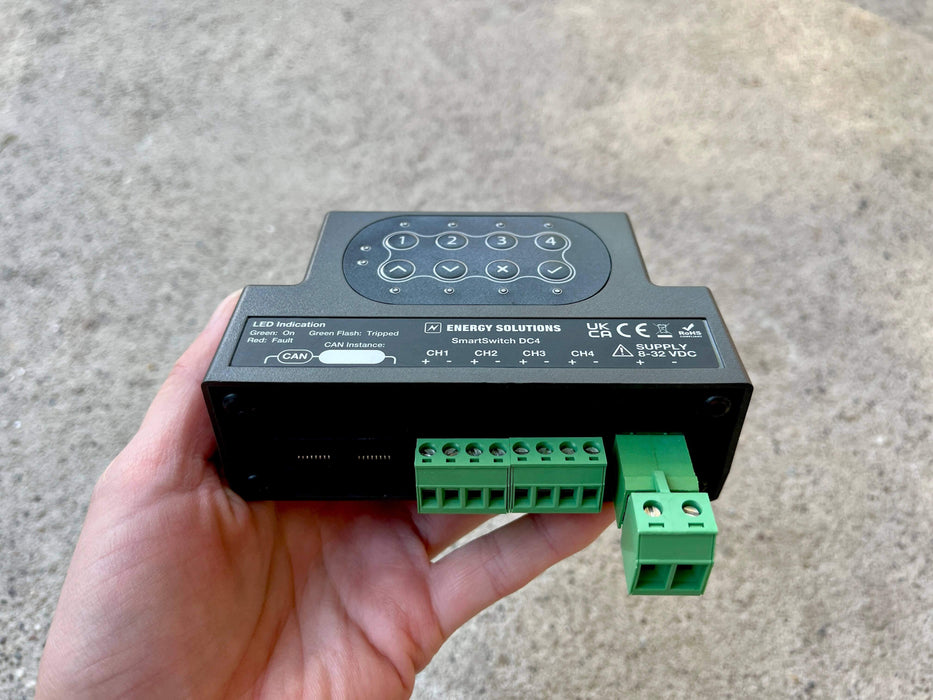

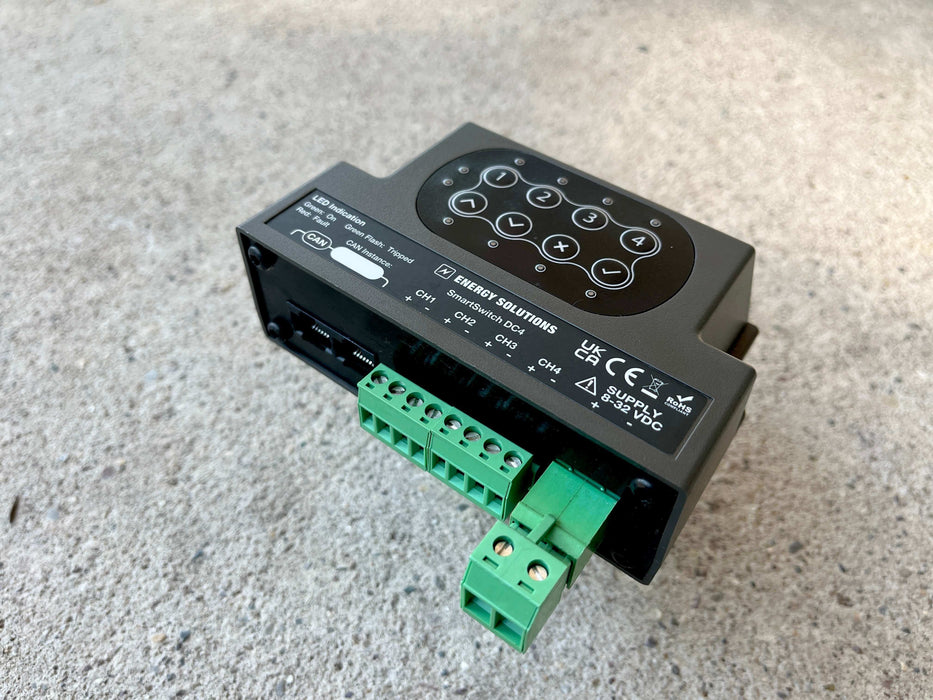

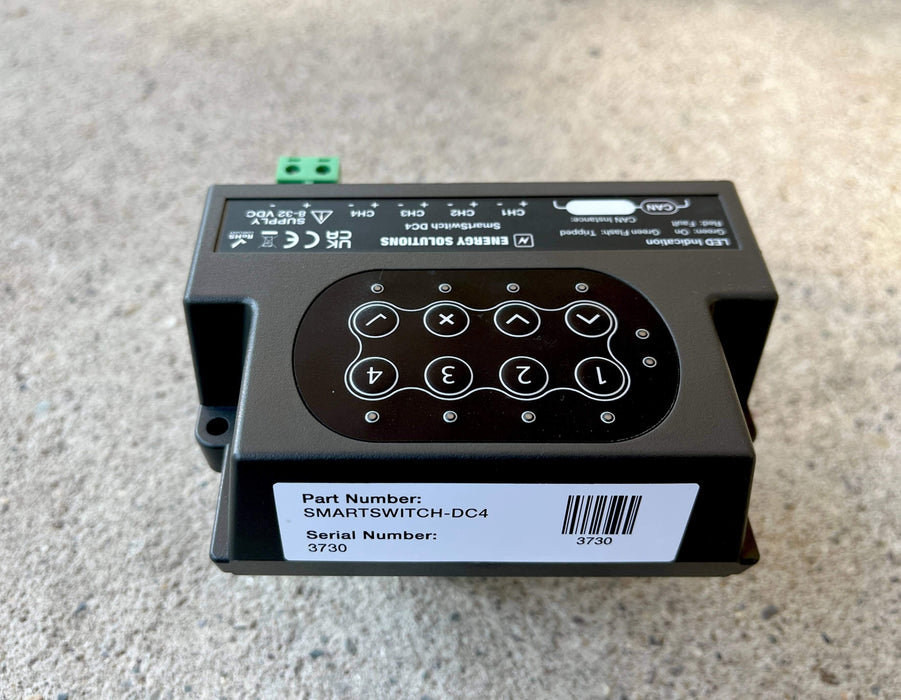

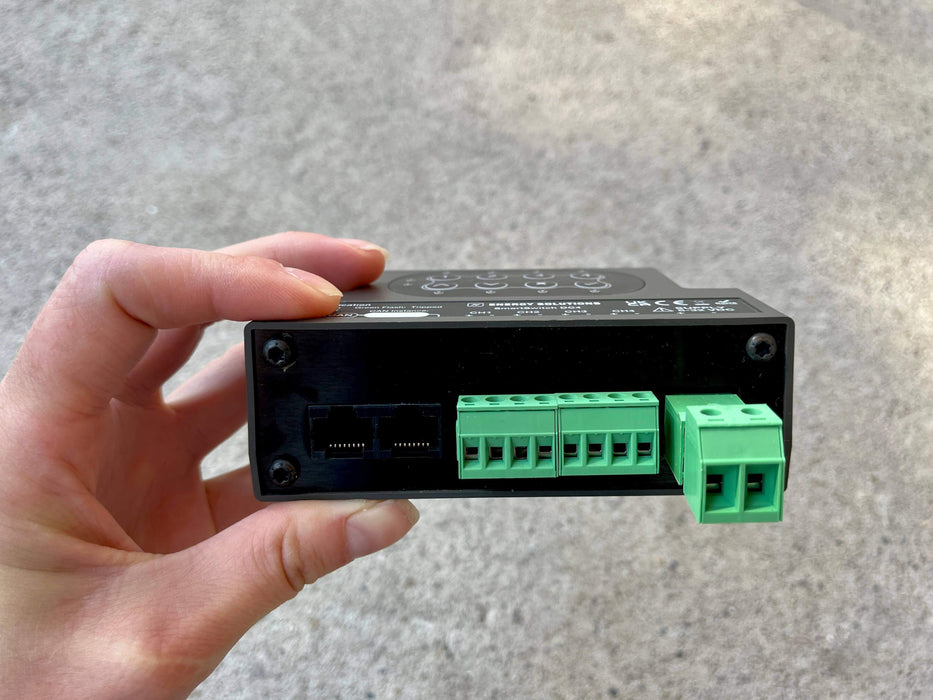

SmartSwitch DC4 — 4 Channel DC Digital Switch
Original price
$315.59
-
Original price
$315.59
Original price
$315.59
$315.59
-
$315.59
Current price
$315.59
☑️ 12V or 24VDC operation
☑️ CAN bus controlled
☑️ Victron Energy Integrated
💡 Have a Question? Get a Real Answer >
SKU SMARTSWITCH-DC4
Downloads
Datasheets
Quick installation guides
Take total control of your 12V or 24V power system – safely, smartly, and effortlessly.
Looking to manage lights, fans, fridges, or any other DC-powered gear? The SmartSwitch DC4 gives you four independent channels to switch or dim your devices – all from your Victron GX touchscreen, Remote Console on VRM.
Designed with CANbus compatibility, built-in safety features like thermal and current overload protection, and easy-to-read status lights, this is the switchboard of the future. No clunky relays, no messy wiring.
Perfect for:
- Camper vans & overland vehicles
- Off-grid homes & cabins
- Marine & boat DC systems
Why You'll Love It:
- One unit, four channels – control lighting, fans, pumps, fridges, etc.
- Built-in current limiting – protects your gear like a virtual fuse.
- Dimming included – ideal for indoor or outdoor lighting setups.
- No-drama wiring – tidy, clean, and integrates seamlessly with Victron GX systems.
Technical Specifications
- Operating Voltage: 8–32V DC (for loads), 6–32V (control only)
- Compatible Voltages: 12V and 24V systems only
- Output Channels: 4 × independently controlled DC outputs (latched, momentary, or dimming mode)
- Max Output per Channel: 5A continuous
- Total System Limit: Internally fused at 15A total
- Current Monitoring: Per channel, full-scale up to 30A
- Overload Protection: Simulated 2A, 3A, or 5A ATO-style electronic fuse behavior
- Thermal Shutdown: Triggered at 194°F (auto-recovery at 168°F)
- CANbus: Isolated, internally powered – supports J1939/NMEA2000 with address claim and PGN

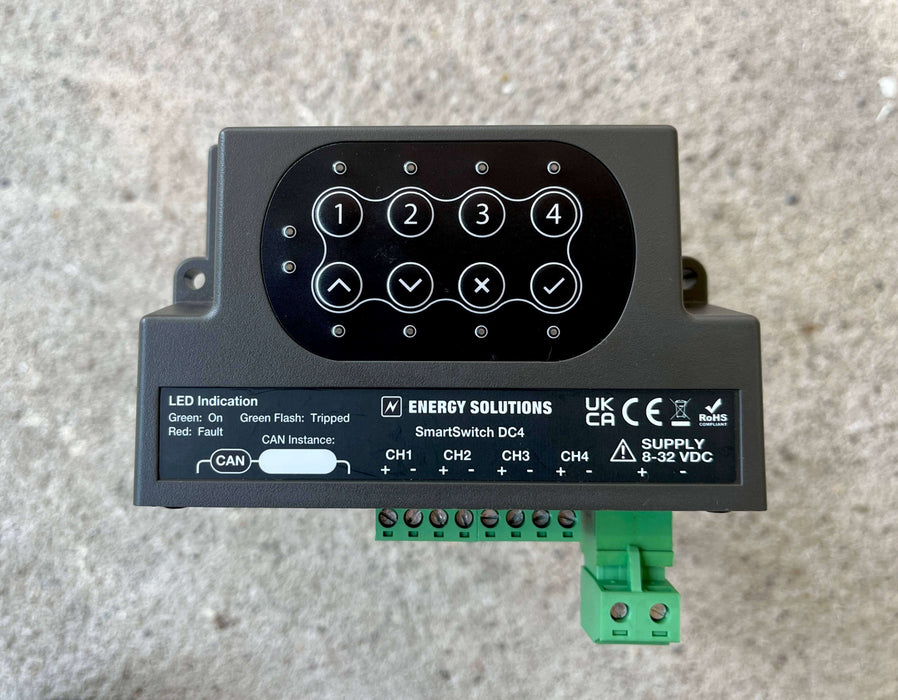

- LED Indicators: On/tripped/fault state per channel
- Mounting: DIN rail friendly or surface mount
- Weight: 170g with connectors
- Enclosure Rating: UL94V-0 flame retardant
- Certifications: EN61000-6-1, EN60000-6-3 A1, EN60945:2002 (marine compliant)
