BMV-700
1.0
Rated 1.0 out of 5 stars
1 Review

BMV-700

by Victron Energy
$130.00
$130.00 - $130.00
$130.00
$110.50
$110.50 - $110.50
$110.50

1182 available | Ships in 7-15 days

💡 Not sure what you need for your setup?
SKU BAM010700000
Option: Battery Monitor BMV-700
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

"The crew at Intelligent Controls is top-notch. As a Victron installer, I cannot emphasize how important it is to have a distributor that knows their products inside and out, and is excited to share that knowledge. They are always willing to help troubleshoot and solve the challenging electrical puzzles I present, and make sure I have everything I need to complete an installation when I place an order. Working with them is always a pleasure."

★★★★★
- Ken Smith

Downloads

Datasheets
Enclosure dimensions
Product Manuals
Quick installation guides
System schematics
Technical informations

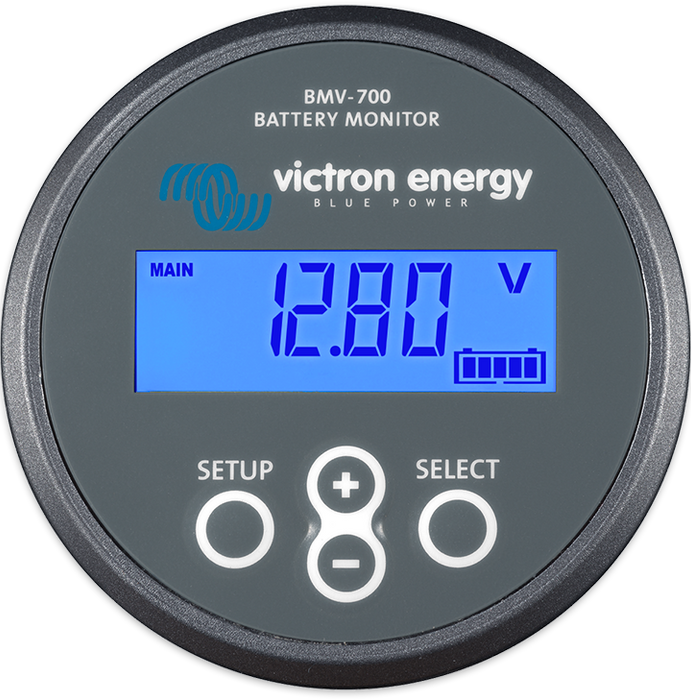

A Victron Energy BMV-700 battery monitor acts as your battery's ‘fuel gauge’, time-to-go indicator, and much more:

Standard features:

  • Displays battery voltage, current, power, ampere-hours consumed and state of charge
  • Remaining time at the current rate of discharge
  • Programmable visual and audible alarm
  • Programmable relay, to turn off non critical loads or to run a generator when needed
  • 500 Amp quick connect shunt and connection kit
  • Shunt selection capability up to 10,000 Amps
  • VE.Direct communication port
  • Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
  • Wide input voltage range: 6.5 – 95V
  • High current measurement resolution: 10 mA (0.01A)
  • Low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V

BMV-702 additional features:

  • Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings.

Basic Commissioning Steps for Victron Inverters

What happens when a Victron Energy inverter/charger loses battery communications? In this video, we discuss what happens and how to edit the inverter's default charging parameters, allowing you to charge your battery bank with the appropriate voltages until communications are restored. This example off-grid power system includes 48-volt Pylontech US5000 LiFePO4 batteries. When adjusting these settings, reference your battery's manual.

Related blog posts

See more
1.0
Rated 1.0 out of 5 stars
Based on 1 review
Total 5 star reviews: 0 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 1
0%would recommend this product
Slide 1 selected
Powered by OkendoOpen Okendo Reviews in a new window
Write a Review (Opens in a new window)
1 review
  • MH
    Manfred H.
    Verified Buyer
    I do not recommend this product
    Rated 1 out of 5 stars
    2 weeks ago
    Victron BMV-702 not BMV-700 !

    On my old display the numbers started to fade after a few years in use. The display is mounted under deck and never sees any sunlight. The rubber contacts in the display, which are transmits to the LCD, are bad quality. The numbers are to see a bit better, when you push the display hard with your fingers. I wanted to buy a replacement display only! Despite great efforts of me and Reid Loessberg, that was not possible due to unwillingness of Victron in the Netherlands. I had to buy the complete unit inclusive the shunt and cables. I call that bad Victron customer policy, not to be able to buy just a a spare part. Summery: 1. Bad quality display, 2. Customer unfriendly policy of Victron
